Stand Out Among the Competition

Red Keypad in Alarm

False Alarm Question

Menu Driven Keypad Interaction


Keypad Features & Comparison

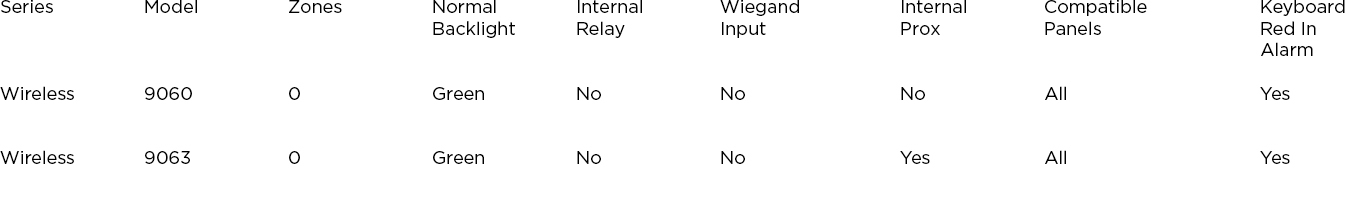

Series Model Zones Normal Backlight Internal Relay Wiegand Input Internal Prox Compatible Panels Keyboard Red In Alarm
Wireless 9060 0 Green No No No All Yes
Wireless 9063 0 Green No No Yes All Yes

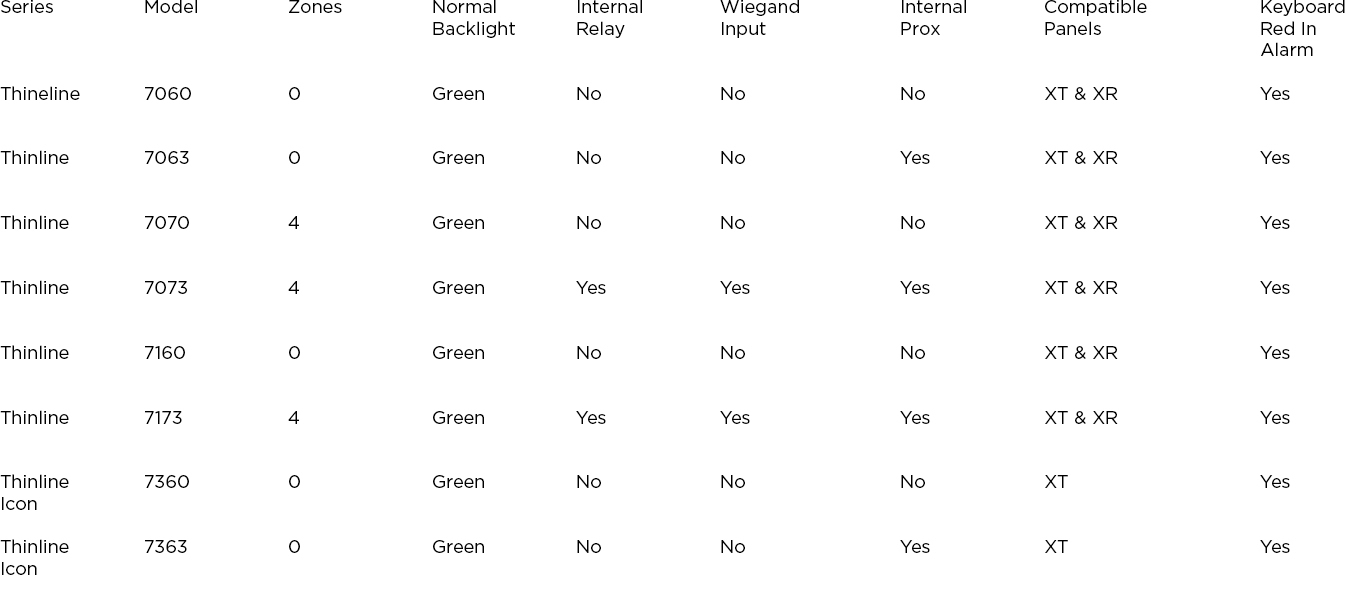

Series Model Zones Normal Backlight Internal Relay Wiegand Input Internal Prox Compatible Panels Keyboard Red In Alarm
Thinline 7060 0 Green No No No XT and XR Series Yes
Thinline 7063 0 Green No No Yes XT and XR Series Yes
Thinline 7070 4 Green No No No XT and XR Series Yes
Thinline 7073 4 Green Yes Yes Yes XT and XR Series Yes
Thinline 7160 0 Green No No No XT and XR Series Yes
Thinline 7173 4 Green Yes Yes Yes XT and XR Series Yes
Thinline Icon 7360 0 Green No No No XT Series Yes
Thinline Icon 7363 0 Green No No Yes XT Series Yes

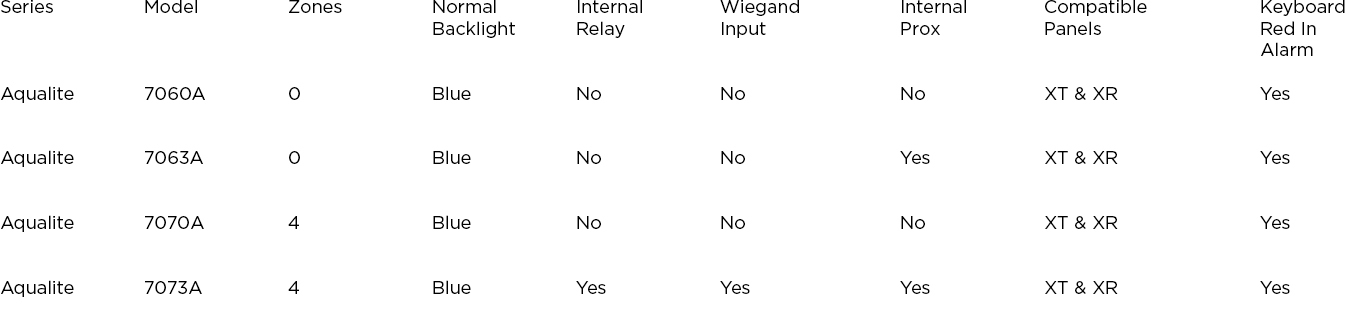

Series Model Zones Normal Backlight Internal Relay Wiegand Input Internal Prox Compatible Panels Keyboard Red In Alarm
Aqualite 7060A 0 Blue No No No XT and XR Series Yes
Aqualite 7063A 0 Blue No No Yes XT and XR Series Yes
Aqualite 7070A 4 Blue No No No XT and XR Series Yes
Aqualite 7073A 4 Blue Yes Yes Yes XT and XR Series Yes

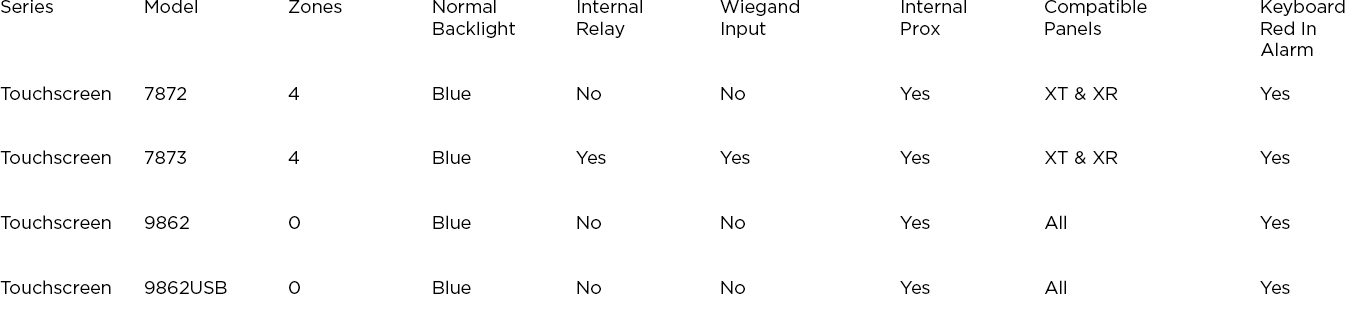

Series Model Zones Normal Backlight Internal Relay Wiegand Input Internal Prox Compatible Panels Keyboard Red In Alarm
Touchscreen 7872 4 Blue No No Yes XT and XR Series Yes
Touchscreen 7873 4 Blue Yes Yes Yes XT and XR Series Yes
Touchscreen 9862 0 Blue No No Yes All Yes
Touchscreen 9862USB 0 Blue No No Yes All Yes

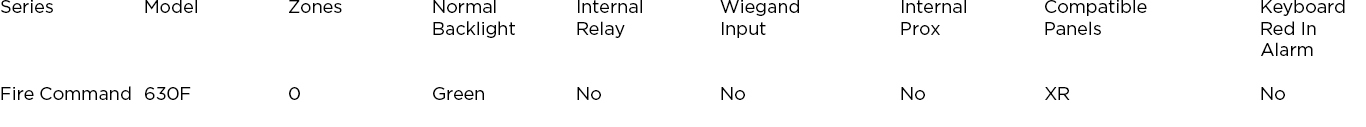

Series Model Zones Normal Backlight Internal Relay Wiegand Input Internal Prox Compatible Panels Keyboard Red In Alarm
Fire Command 630F 0 Green No No No XR Series No

Learn more about DMP Keypads at DMP University

To become more confident in your DMP product knowledge, take advantage of our online courses and videos available from your computer or mobile device. After you log in, you'll be able to choose from a list of all available courses and keep track of the courses you've successfully completed.

DMP products are designed, engineered and manufactured in Springfield, Missouri with U.S. and global components.
